STICK WRITER
StickWriter Stand-alone Socket Board Option
Stand-alone Socket Board


> Connection example
> SS Board (Stand-alone Socket Board)Correspondence table

Outline
  • Because wiring for the flash writing is given, the wiring processing by the user is unnecessary.
  • The correspondence board of each device is prepared. (Refer to "Table for the SS board" for details. )
  • AC adaptor attachment for standalone writing
  • Only turning on the power on/off switch on the board when the standalone operates begins writing.


Connection example

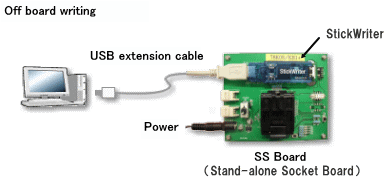

a) When PC is connected
b) When standalone operates(Operate in the target power supply. )

<UP> <BACK>

Table for SS board 78K0S Series 78K0 Series V850 Series

Series Device name Package SS Board
78K0S/Kx1+ KY1+ uPD78F9212GR 16pinSSOP GR SS-K0SKY1-GR
uPD78F9211GR
uPD78F9210GR
KA1+ uPD78F9222MC 20pinSSOP MC SS-K0SKA1-MC
uPD78F9221MC
KB1+ uPD78F9234MC 30pin SSOP MC SS-K0SKB1-MC
uPD78F9232MC

78K0 Series
Series Device name Package SS Board
78K0/Kx2 KB2 uPD78F0503DMC 30pin SSOP MC SS-K0KB2-MC
uPD78F0503MC
uPD78F0502MC
uPD78F0501MC
uPD78F0500MC
KC2 uPD78F0513DGB 44pinLQFP GB SS-K0KC2-GB
uPD78F0513GB
uPD78F0512GB
uPD78F0511GB
uPD78F0515DGA 48pinLQFP GA SS-K0KC2-GA
uPD78F0515GA
uPD78F0514GA
uPD78F0513GA
uPD78F0512GA
uPD78F0511GA
KD2 uPD78F0527DGB 52pinLQFP GB SS-K0KD2-GB
uPD78F0527GB
uPD78F0526GB
uPD78F0525GB
uPD78F0524GB
uPD78F0523GB
uPD78F0522GB
uPD78F0521GB
KE2 uPD78F0537DGC 64pinLQFP GC SS-K0KE2-GC
uPD78F0537GC
uPD78F0536GC
uPD78F0535GC
uPD78F0534GC
uPD78F0533GC
uPD78F0532GC
uPD78F0531GC
uPD78F0537DGK 64pinLQFP GK SS-K0KE2-GK
uPD78F0537GK
uPD78F0536GK
uPD78F0535GK
uPD78F0534GK
uPD78F0533GK
uPD78F0532GK
uPD78F0531GK
uPD78F0537DGB 64pinLQFP GB SS-K0KE2-GB
uPD78F0537GB
uPD78F0536GB
uPD78F0535GB
uPD78F0534GB
uPD78F0533GB
uPD78F0532GB
uPD78F0531GB
KF2 uPD78F0547DGC 80pinLQFP GC SS-K0KF2-GC
uPD78F0547GC
uPD78F0546GC
uPD78F0545GC
uPD78F0544GC
uPD78F0547DGK 80pinLQFP GK SS-K0KF2-GK
uPD78F0547GK
uPD78F0546GK
uPD78F0545GK
uPD78F0544GK
78K0/Lx2 LE2 uPD78F0361GB 64pinLQFP GB SS-K0LE2-GB
(Developing)
uPD78F0362GB
uPD78F0363GB
uPD78F0361GK 64pinLQFP GK SS-K0LE2-GK
(Developing)
uPD78F0362GK
uPD78F0363GK
LF2 uPD78F0372GC 80pinLQFP GC SS-K0LF2A-GC
(Developing)
uPD78F0373GC
uPD78F0374GC
uPD78F0375GC
uPD78F0376GC
uPD78F0382GC 80pinLQFP GC SS-K0LF2B-GC
(Developing)
uPD78F0383GC
uPD78F0384GC
uPD78F0385GC
uPD78F0386GC
uPD78F0372GK 80pinLQFP GK SS-K0LF2A-GK
(Developing)
uPD78F0373GK
uPD78F0374GK
uPD78F0375GK
uPD78F0376GK
uPD78F0382GK 80pinLQFP GK SS-K0LF2B-GK
(Developing)
uPD78F0383GK
uPD78F0384GK
uPD78F0385GK
uPD78F0386GK
LG2 uPD78F0393GC 100pinLQFP GC SS-K0LG2-GC
uPD78F0394GC
uPD78F0395GC
uPD78F0396GC
uPD78F0397GC

V850 Series
Series Device name Package SS Board
V850ES/Sx2 SG2 uPD70F3283YGC 100pinLQFP GC SS-850SG2-GC
uPD70F3281YGC
uPD70F3273YGC
uPD70F3271YGC
uPD70F3263YGC
uPD70F3261YGC
SJ2 uPD70F3288YGJ 144pinLQFP GJ SS-850SJ2-GJ
uPD70F3286YGJ
uPD70F3284YGJ
uPD70F3276YGJ
uPD70F3274YGJ
uPD70F3266YGJ
uPD70F3264YGJ
V850ES/Jx2 JG2 uPD70F3719GC 100pinLQFP GC SS-850SG2-GC
uPD70F3718GC
uPD70F3717GC
uPD70F3716GC
uPD70F3715GC
JJ2 uPD70F3724GJ 144pinLQFP GJ SS-850SJ2-GJ
uPD70F3723GJ
uPD70F3722GJ
uPD70F3721GJ
uPD70F3720GJ
V850ES/Kx2 KE2 uPD70F3726GB 64pinLQFP GB SS-850KE1-GB
KF2 uPD70F3729GC 80pinQFP GC SS-850KF1-GC
uPD70F3728GC
KG2 uPD70F3732GC 100pinLQFP GC SS-850KG1-GC
uPD70F3731GC
KJ2 uPD70F3734GJ 144pinLQFP GJ SS-850KJ1-GJ
uPD70F3733GJ
V850ES/Kx1 KE1 uPD70F3207HYGB 64pinLQFP GB SS-850KE1-GB
uPD70F3207HYGK 64pinLQFP GK SS-850KE1-GK
KF1 uPD70F3210HYGC 80pinLQFP GC SS-850KF1-GC
uPD70F3211HYGC
uPD70F3210HYGK 80pinLQFP GK SS-850KF1-GK
uPD70F3211HYGK
KG1 uPD70F3214HYGC 100pinLQFP GC SS-850KG1-GC
uPD70F3215HYGC
KJ1 uPD70F3217HYGJ 144pinLQFP GJ SS-850KJ1-GJ
uPD70F3218HYGJ
V850ES/Kx1+ KE1+ uPD70F3302YGB 64pinLQFP GB SS-850KE1-GB
uPD70F3302YGK 64pinLQFP GK SS-850KE1-GK
KF1+ uPD70F3306YGC 80pinLQFP GC SS-850KF1-GC
uPD70F3308YGC
uPD70F3306YGK 80pinLQFP GK SS-850KF1-GK
uPD70F3308YGK
KG1+ uPD70F3311YGC 100pinLQFP GC SS-850KG1-GC
uPD70F3313YGC
KJ1+ uPD70F3316YGJ 144pinLQFP GJ SS-850KJ1-GJ
uPD70F3318YGJ
V850ES/Fx2 FE2 uPD70F3231GB 64pinLQFP GB SS-850FE2-GB
(Developing)
FF2 uPD70F3233GK 80pinLQFP GK SS-850FF2-GK
(Developing)
FG2 uPD70F3235GC 100pinLQFP GC SS-850FG2-GC
(Developing)
uPD70F3236GC
FJ2 uPD70F3237GJ 144pinLQFP GJ SS-850FJ2-GJ
(Developing)
uPD70F3239GJ
V850ES/Hx2 HE2 uPD70F3701GB 64pinLQFP GB SS-850FE2-GB
(Developing)
uPD70F3700GB
HF2 uPD70F3704GK 80pinLQFP GK SS-850FF2-GK
(Developing)
uPD70F3703GK
uPD70F3702GK
uPD70F3701GK
HG2 uPD70F3707GC 100pinLQFP GC SS-850FG2-GC
(Developing)
uPD70F3706GC
HJ2 uPD70F3712GJ 144pinLQFP GJ SS-850FJ2-GJ
(Developing)
uPD70F3711GJ
uPD70F3710GJ
uPD70F3709GJ
