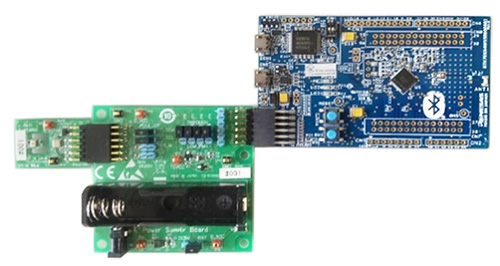

「chip 1 stop」で購入This product is an evaluation board for measuring IAQ (indoor air quality), TVOC (total volatile organic compounds), temperature and humidity.
When this product is connected to Renesas EK-RA4W1, it can collect IAQ (air quality) and temperature / humidity information via Bluetooth ® 5.0 Low Energy (BLE) communication.
TS-SS-TVOC-POW is used in combination with Renesas EK-RA4W1.
| Product | Product Name:Indoor Air Quality Sensor Evaluation Kit Item code:TS-SS-TVOC-POW |
|---|---|
| Configuration | MCU board:Renesas EK-RA4W1(*1) Sensor evaluation board:Indoor Air Quality Sensor Evaluation Kit power supply board:Indoor Air Quality Sensor Evaluation Kit |
| EK-RA4W1 | Renesas RA4W1 MCU 48MHz Arm Cortex®-M4 core ProgramFlash: 512KB SRAM : 96KB Data Flash : 8KB |
| Functions | Use Renesas HS3001, ZMOD4410 to measure Humidity, Temperature,IAQ,TVOC. Bluetooth Low Energy 5 0 Networking with High-Power-Efficiency Microcontroller RA4W1. |
| Accessories | AC adapter is sold separately. (Specification:EIAJ#2 DC5V/2A or more center +) AC adapter (Specification:EIAJ#2 DC5V/2A or more center +)(*1) Lithium ion batteries (*1) Lithium ion batteries is sold separately. |
(*1):These products (Renesas EK-RA4W1, AC adapter or lithium-ion battery) are not included in the indoor air quality sensor evaluation kit.These products (Renesas EK-RA4W1, AC adapter or lithium-ion battery) are not sold by us. Please purchase separately according to the product specifications.

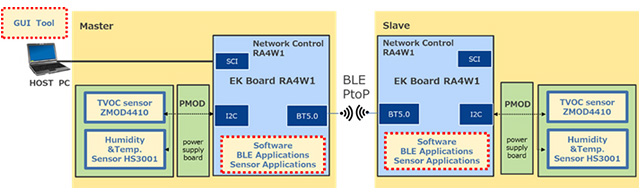

This system is environmental sensor network solution control sample software for building / HVAC using RA4W1, ZMOD4410 (IAQ), HS3001 (Humidity & Temp. Sensor).
(Reference Source:Renesas Electronics Corporation)
Please refer to Renesas Electronics website for Firmware and Development Tool.
https://www.renesas.com/jp/en/application/home-building/wireless-sensor-network-solutions
