RL78/I1A Lighting Communication Control Gear Evaluation Board (with Renesas Electronics RL78/I1A CPU)
TS-CG-RL78I1A-102KIT

「chip 1 stop」で購入

Overview

TS-CG-RL78I1A-102KIT is the evaluation board working as platform to construct your "Control Gear" environment comforming to DALI-2.
Behavior as DALI-2 "Control Gear" is achieved by applying our protocol stack library on this board.

Connection Example

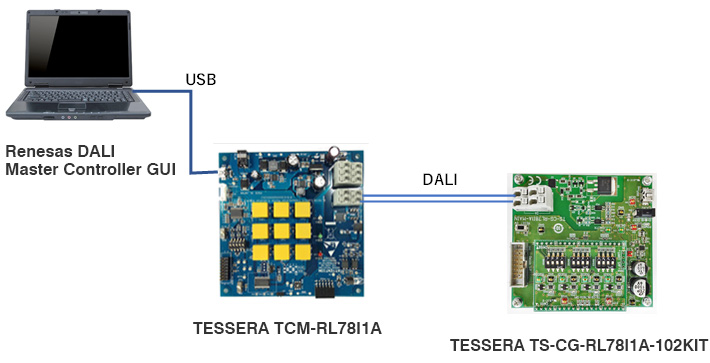

TS-CG-RL78I1A-102KIT Connection Example

Specification

Product Name TS-CG-RL78I1A-102KIT
Configuration Main board: TS-CG-RL78I1A-MAIN (1 board)
Option board: TS-CG-RL78I1A-OP1 (1 board)
On-board CPU Renesas Electronics RL78/I1A(R5F107DE)
ProgramFlash: 64KB
SRAM: 4KB
DataFlash: 4KB
Interface DALI-2
Supported Emulator Renesas Electronics E2 Emulator Lite
Accessories Main board: TS-CG-RL78I1A-MAIN
Option board: TS-CG-RL78I1A-OP1

Software

TS-CG-RL78I1A-102KITSoftware

DALI communication (for dimming control etc.) is achieved by "DALI Driver for TS-CG-RL78I1A-102KIT" and our DALI protocol stack library.
It's behavior, as DALI-2 "Control Gear", has passed our verification test with ProbitLab2 according to the same sequences as DiiA certified formal ones.

Sample firmware for evaluation is written.

We also provide our DALI protocol stack library sold separately with source code.


You are able to sent mail for the technical request from the e-mail form
We never accept the question by the telephone.
