| Product Name |
TK-78K0/FF2+CL |
| CPU |
NEC ELECTRONICS uPD78F0893GK |
| Operating Frequency |
20MHz (32.768KHz) |

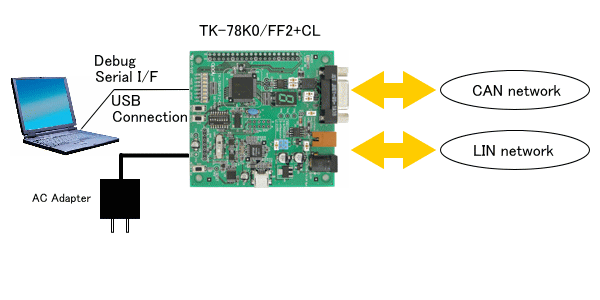

| Interface |
USB(miniB)
connector for MINICUBE(2)
LIN I/F connecter
CAN I/F connecter
Peripheral board connector of 40pin socket (No connecter) |
Surported
Machine |
Host |
PC AT compatibility USB Interface |
| OS |
Windows 2000/XP |
| Operating Voltage |
5V |
| Body Size |
W75 X D80 (mm) |
| Accessories |
TK-78K0/FF2+CL CPU board
Development tool/Manual CD-ROM
USB cable(MINI B - A)
LIN cable (separate cable with clip)
CAN cable (D-Sub 9Pin connector)
AC adaptor (DC12V output)
|
